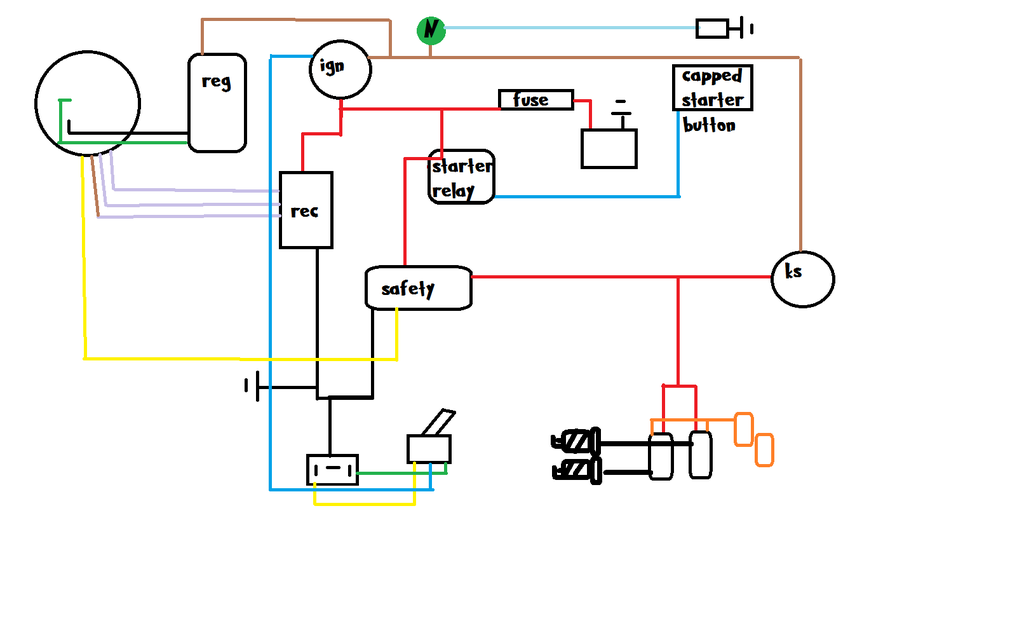

Hey everyone I would appreciate any help or advice thrown my way This is currently how I have my wiring set up on my 1979 xs650 First time working on an older bike like this, The previous owner hacked the wiring to pieces so I basically had to start from scratch After sifting through hundreds of diagrams i finally got her running, sort of A fresh battery has been installed and it runs great BUT I'm concerned about how the regulator is hooked up A green wire running from it goes to the bottom brush on the stator A black wire coming from it goes to the top brush The brown wire coming from it is supposed to tie into the other brown wires running through the bike When I first got the bike it was hooked up into the rear brake switch, since I didn't have a brake light at the time I capped the wire and removed the switch Since then I have been looking online and saw the brown wire coming from the regulator was supposed to tie into all the other brown wires i did so and boom blew a fuse Tried it again and of course blew it Seems like the problem has to be the regulator since it starts right up and runs fine without that brown wire from it hooked up I have included a diagram for reference I have taken off most things I would find unnecessary i.e. tach lights, high beam indicator, turn signals, light checker I think I have everything wired in correctly but this has me stumped Any help is greatly appreciated, sorry again for my ignorance
Post by ignitionsystem on Nov 20, 2015 8:05:47 GMT -5
1. Disconnect both the black and green wire from the regulator. 2. If the fuse still blows, its a short in the regulator or the green wire. 3. If the fuse does not blow after step #1 then most likely your rotor is shorted. 4. In any event, measure the resistance of the rotor from one slip ring to the other with the brushes removed. 5. #4 should be about 5 Ohms. 6. When you reinstall the brushes, check your installation to be sure the green wire brush is not shorted to ground. 7. With the green and black wires disconnected and after seeing 5 Ohms on the slip rings, measure from brush to brush and look for 5+ Ohms. 8. Measure resistance from each brush to ground. Should be infinite with wires disconnected. 9. Let's not forget the simple things: Like, what is the amp rating of the fuse? Should be 20 Amps.
