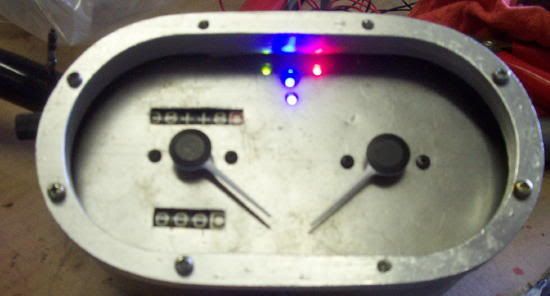

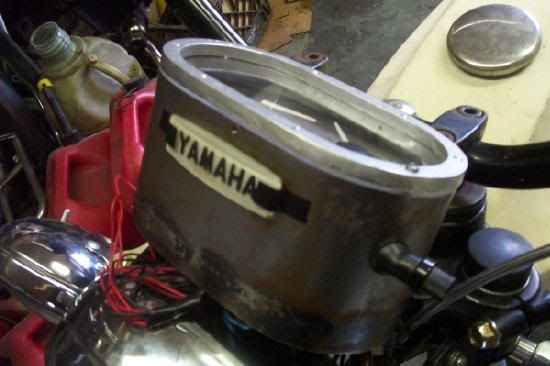

Heres a gauge assembly that I'm making for my 650. I like the tach and speedo contained in 1 housing, but Im not sure of the orientation of the needles. I want something different and I like the 1 gauge cluster for the 2 gauges. The 3 pics with the old gauge faces on them are just for reference as to the 3 possibilitys that I have been toying with. A new gauge face will be made with the numbers in the proper orientation. The other 2 pics show the new housing as of now. It will get an aluminum cover to hold the glass and the idiot lights will be put back into the new gauge face.
I like the speedo pointing down and the tach pointing up. Any other opinions? Daniel
Last Edit: Oct 10, 2006 17:21:29 GMT -5 by dgfischer
Observing other dials / gauges on other bikes, cars, etc it seems common to have the gauges oriented so that "normal" status has the needles pointing in the same orientation with the same directional movement. For this application that means a good orientation would be your option which shows the needles at the 5 o'clock position. That way, when you are cruising, both needles will point to about 8 o'clock and rise the same direction. It should be easier to read at a glance so you can keep you eyes on the road for longer !
At the moment I am converting my tacho to an electronic type. I have a suitable stainless bucket but no means to fit the glass as yet. What ideas have you had to fit yours? I noticed you have a flange around the edge, so will you crimp a retaining ring over as factory fitted gauges do, or do you have a different idea?
I've made a 2 peice aluminum lens holder for the gauges. 1 peice mounts inside the bucket and the other peice will bolt to it with the glass sandwiched between. The 3 gauge faces shown are in the modified stock buckets and the bucket I made doesnt have the lip shown in the 3 pics. The assembly will have the idiot lights in it and will also have the odo reset. I'm still not sure what orientation I will use. With the 2 needles at 8 oclcok, the # on the gauges would interfere with each other. I will probably go with the 1st or 3rd gauge face that is pictured. Or maybe not? It has been on the back burner as I have other work that needs to be done.
kardon: Wow quiet here, where did they all go.
Oct 7, 2016 2:18:13 GMT -5
gggGary: XS650.com LOL
Feb 16, 2017 20:49:02 GMT -5
buell88: Anybody have any idea who built the xs650 tracker used in the Draggin Jeans Ad on Pipeburn?
May 16, 2017 16:24:09 GMT -5
joshua: The regulator/rectifier unit I got from Mikes PMA has closer hole spacing than original. Are we supposed to mill the holes to fit?
Jun 7, 2017 19:25:58 GMT -5
joshua: My bad. I found the bracket they supplied to mount the rectifier/regulator... Uh oh. How is this meant to work? Which way is it meant to mount? Looks like I have to use some spacers or something. Good instructions would be nice.
Jun 7, 2017 22:09:52 GMT -5
craig8johnson: Not sure if this is the right spot or not but oh well...
Jul 11, 2017 18:04:15 GMT -5
craig8johnson: I'm checking the charging system. I'm afraid I might have fried the last battery. With the solid state regulator (after market) what should it be charging at. The book says, I think, 15 volts. I'm hitting 17 when revved. Is that too high?
Jul 11, 2017 18:06:19 GMT -5
gggGary: Yes 17 volts is too high, about 14 volts is max, sounds like you don't have the right regulator or it's wired wrong.
Jul 13, 2017 6:54:33 GMT -5
dean: Just saying Hello, new member who is going to fix up a 79 XS650 that has seen its better days. I will definitely have lots of questions coming up.
Jun 23, 2018 16:45:32 GMT -5
tt650: Trying to breathe life into a 1980 that's been stored (indoors) for 25 yrs. Air filters are dry rotted. Have cleaned carbs but she only runs briefly on choke then stops. Need jet setting info and other ideas that might help her idle and rev.
Jul 3, 2018 19:15:19 GMT -5
trix13: Hey everyone! New to the forum and am fighting those gremlins!! New charging system, ignition switch, coil and fuse box. Resistance is higher than normal on the ignition pick up so I'm trying to find one. No such luck yet.
Aug 16, 2018 8:50:48 GMT -5
trix13: Also, even though all of my connections are clean, I cannot seem to find out why , when at higher rpms, I hit the signals and the rpms pulse with the signals...hahah. same with the brake light. I appreciate all input!!
Aug 16, 2018 8:55:08 GMT -5
bob99: how do I post a question. I am new to the forum
Jun 6, 2019 10:52:10 GMT -5
adlpc: Hello all! Been enjoying your edifying posts and discussions - and as a fan of the XS650 since my early teenage years happy that I now own a 1980 Special which I plan to turn into a vintage half faired racer. Thank you all for being here!
Oct 1, 2019 0:58:56 GMT -5
jimothyj: Hello everyone, I just joined & wish would have known about this site in 2014 when I brought my 1974 TX650A back from the grave. I have spent a good deal of $$ and alot of time on it. Just painted it and working on electrical, I will post pics soon,
Apr 10, 2021 2:14:13 GMT -5
louisvan: trix13 - I had a problem with my 1975 SX650. When I got to highway speeds, the engine lost power. The problem was in the connectors. At a certain vibration and the wind pushing on the wiring loom, the connector lost continuity. A bad crimp to the wire.
May 20, 2021 1:19:09 GMT -5
deadlykittin: Hey guys,. i have a 82 xs650 special, super new rider, with almost no knowledge on bikes. So was just riding it, getting used to the clutch and all that. But i was noticed its really hard to get the bike to start, using electric start. And the kick pump---
Aug 4, 2022 17:09:55 GMT -5
deadlykittin: loses compression after the first kick. Ontop of that, i noticed it 1, wont go into neutral when sitting still. and now it dies after getting it started in neutral and going into gear
Aug 4, 2022 17:11:01 GMT -5
